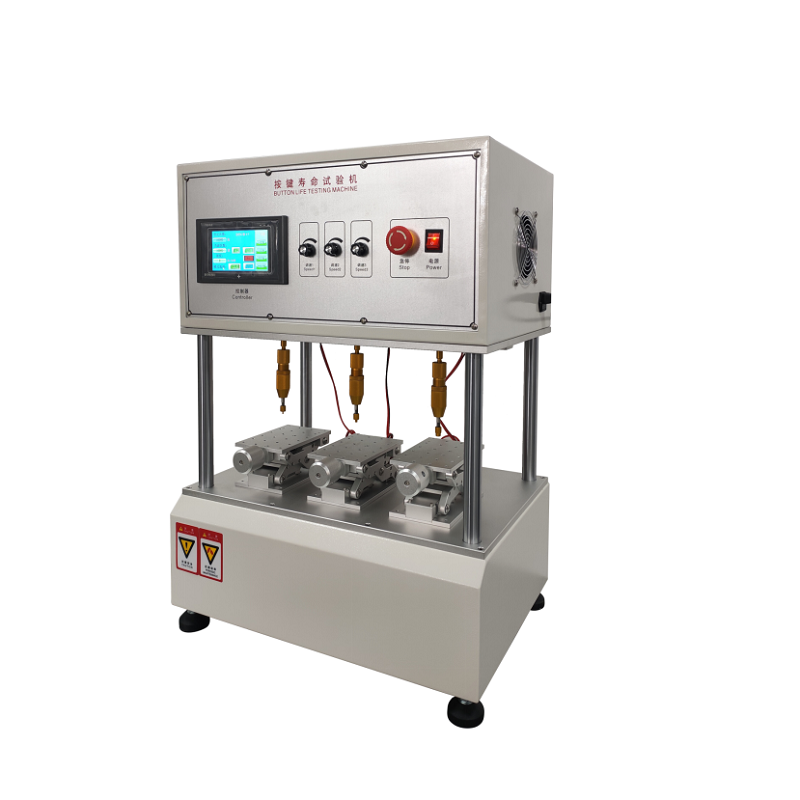

HT-KL-3 Three-axis Key Life Testing Machine Test Station Conduction Aging Tester for Rubber
Introduction:
This machine is suitable for the impact life aging test of key switches, computer keyboards, conductive rubber keys, metal shrapnel keys (commonly known as pots) or keys of the same type. It uses an advanced programmer to control the entire process of the key life test. It can perform life test and conduction test at the same time. If the key is damaged, it will automatically stop. If the object being tested is always "conductive" or "not conductive", the machine will stop running within 8 seconds.
Technical parameters:
1. Number of test products: 3PCS
2. Counter: 8 bits, power-off memory
3. Test head telescopic stroke: 0-20mm
4. Test speed: 0-300 times/minute
5. Strike switch contact force: 0-500gf adjustable
6. Lifting platform stroke: 60mm
7. Machine size: about W500×D420×H760mm
8. Machine weight: about 60Kg
9. Power supply: AC220V 5A
